Dashboards
A dashboard brings an analysis into one interactive report beside the conversation. Ask the agent to decide what belongs together: explain the main finding, compare selected results, remove repeated views, and keep the supporting data accessible. It can combine text, metrics, charts, maps, tables, images, and 3D views using the same widget components.
Ask the agent to compose the report
Section titled “Ask the agent to compose the report”Build a dashboard from our design review. Show the original once and comparethe two useful evolutions. Add an overview, a comparison tab, and an evidencetab. Link the comparisons to the same selected design. Explain the mass andstiffness trade-off, keep units visible, and remove repeated charts.This is an authoring task. The agent reads relevant earlier outputs and their data, chooses a structure, and can add a new figure or explanation when it helps answer the question. You can also specify which views to keep or omit.

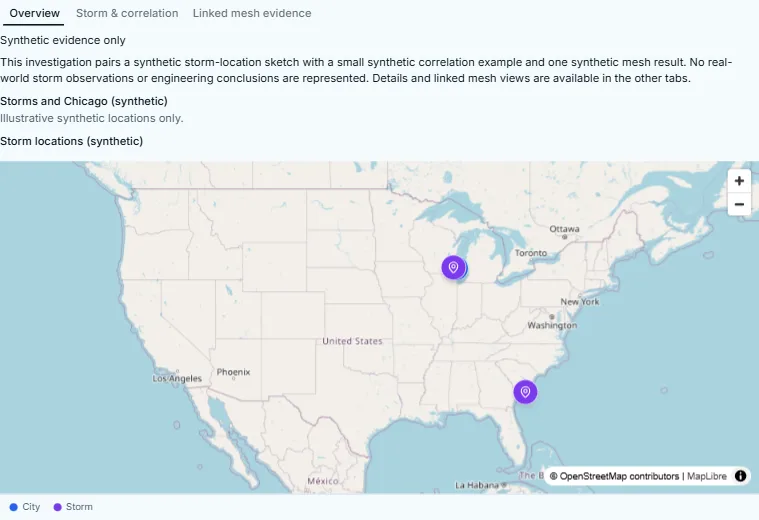

The dashboard opens as an artifact in the side panel. Follow-up requests revise that report over multiple tool calls; it does not have to fit in a single widget generation or a pair of graphs.
Explore one connected system
Section titled “Explore one connected system”| Element | What to ask for |
|---|---|
| Overview | The finding, a few key measures, and the scope of the data. |
| Tabs and sections | Separate the overview, comparisons, and supporting evidence. |
| Shared controls | One filter or selected entity driving the relevant views. |
| Linked views | Highlight the same records across a map, chart, or table. |
| Explanations | Units, definitions, captions, limitations, and why a view matters. |
| Optional detail | A readable default with additional series or sections you can reveal. |
Views only move together when their controls and data are connected. Two plots on the same page do not automatically share filters, and paired 3D views need a shared camera binding to rotate together. See Linked data.
Point to a part and revise it
Section titled “Point to a part and revise it”-
Open the dashboard and find the relevant tab or view.
-
Select records and use Reference this, or use Capture labelled regions to attach a visual area to the next message.
-
Give a concrete request: “Explain this cluster,” “Show the original only once,” or “Hide the minor series by default and let me turn them on.”
-
Open the revised artifact. Versions keeps earlier reports; Lineage shows the inputs and steps behind them.
The reference carries the selected data or visual context, so you do not need to describe a location from memory. The same interaction is demonstrated in Human-agent interaction.
Ask for a visual check
Section titled “Ask for a visual check”For a dense report, ask CLIO to inspect the rendered overview and relevant tabs, adjust the view, capture it, and review the resulting image. For example:
Check this dashboard at side-panel size. Inspect each tab for clipped labels,overlapping legends, and too many visible series. Fix unclear views, keep theunderlying data, and recheck the result before presenting the final version.The development build can inspect supported view bindings and capture the resulting image. The check should follow the controls the view actually exposes; it does not establish numerical correctness or add arbitrary interactions. An agent should say when rendered inspection was unavailable.
Download an image or an interactive report
Section titled “Download an image or an interactive report”Use the dashboard’s PNG action for an image of the displayed view. Use HTML for a self-contained report with its tabs, supported interactions, and referenced data bundled. Dependencies that cannot be captured are reported rather than quietly left out. A saved report cannot call a live agent on its own. Offline maps keep included points and geometry; external basemap tiles are not bundled.
If the dashboard belongs to a larger investigation, export the session with its artifacts to retain the conversation and evidence alongside it.
